Python hou.

Posted on | In
Houdini class

https://www.tutorialspoint.com/python/index.htm
https://vfxbrain.wordpress.com/2016/03/15/python-in-houdini/
https://vimeo.com/14612897
https://docs.python.org/3/
https://youtu.be/Iwuu1O1qo8o https://www.houpywiki.com/Twelve-Days-of-Python#day-0-primer !!«

Setup

  1. Install python 3.7.9 separately with pytorch somewhere on your machine (+add pythoin to PATH))
  2. Additional libraries: instal by pip
    • python -m pip install numpy scipy will instal scipy library in : Phyton/Lib/sire-packages/… - Scipy
  3. Edit windows paths: system enviroment variables > Environment Variables… > New…
    • Variable name” PYTHONPATH - Variable Value: C:\Users… Lib/site-packages (pointing to the site-package folder. Houdini will be able to use any libs installed here.)

Usage

Session Code

  • Windows/Python Source Editor/.. - Python Source Editor - Persistant and embeded in hip file: .

  • hou.session.foo() - Call saved code and function

  • Create foo function in session:
    import hou
def foo():
 foo_obj = hou.node("/obj") # go to directory
 foo_geo = foo_obj.createNode("geo", "foo_geo") # create container
 foo_box = foo_geo.createNode("box", "foo_box") # create box

Shell

  • Windows/Python Shell/.. - Live code, which will disappear after H is closed.

  • Call foo from session:

    Python 2.7.15 (default, Dec  2 2020, 15:50:44) [MSC v.1916 64 bit (AMD64)] on win32
Houdini 18.5.518 hou module imported.
Type "help", "copyright", "credits" or "license" for more information.
# Call fn from Source Editor in Python Shell:
>>> hou.session.foo()

Shelf

  • RMB on Shelf > New Tool - Scripts section to write code
  • can call from: hou.session.foo()
  • You can drag and drop nodes to shelf or make new one.

Node

  • Node Script

Node Expression

  • Session code is available in expressions without hou.session.

TOP

  • Mapper
  • Partitioner
  • Processor
  • Script

Classes

  • hou.node
  • hou.objNode
  • hou.geometry

hou.

Houdini python class. (hou. - can be droped it in expressions)

  • List childrens of node
    # Define fn.
def childrenOfNode(node):
  result = []
  for c in node.children():
      result.appnd(c)
      result += childrenOfNode(c)
  return result
# Call defined fn by calling var: n with (node):
childrenOfNode(n)
childrenOfNode(hou.node('/obj/adress'))
  • Print with upper cases
    def examplereturn(name):
 return name.upper()
# call:
print(examplereturn("houdini"))
# HOUDINI

hou.node

Create node, set flags and connect nodes

  • Create node node at /obj/foo_geo/foo_box
    hou.node("/obj").createNode("geo",'foo_geo').createNode("box","foo_box") #
  • Store node
    foo_obj = hou.node("/obj") # store context
foo_geo = foo_obj.createNode("geo", "foo_geo") # create container
foo_box = foo_geo.createNode("box", "foo_box") # create box
foo_sphere = foo_geo.createNode("sphere", "foo_sphere") # create box
  • Store existing node in varaible
    foo_geo_copy = hou.node('/obj/foo_geo') # store node in variable (can drag from viewport)
  • Connect nodes
    foo_box.setInput(0, foo_sphere,0)
  • Flags
    foo_sphere.setDisplayFlag(1)
foo_sphere.setRenderFlag(False)
foo_sphere.isDisplayFlagSet()
foo_sphere.isObjectDisplayed()
foo_sphere.setSelectableInViewport(False)
  • Select
    foo_sphere = setSelected(True) #- Select ball node
foo_sphere = isSelected() # - Return bool. Check if selected

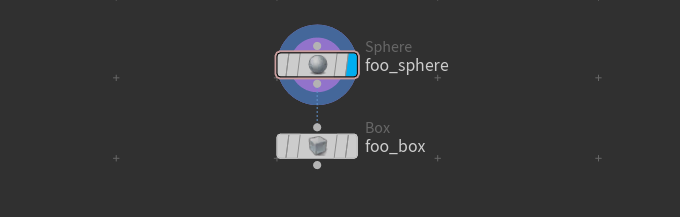

  • Create 2 nodes and set flags
    def fooFunction():
   obj = hou.node("/obj")
   foo_geo = obj.createNode("geo", "foo_geo")
   foo_box = foo_geo.createNode("box", "foo_box")
   foo_sphere = foo_geo.createNode("sphere", "foo_sphere")
   foo_box.setInput(0, foo_sphere,0) # connect inputs
   foo_sphere.setDisplayFlag(1)
   foo_sphere.setRenderFlag(1)

  • Delete
    foo_box.destroy
foo_sphere.destroy

Storing Parameters

hou.node().param("tx") # return a parameter for this node
hou.node().paramTuple() # for multi value params
hou.node().params() # return all parameters of this node
hou.node().param("tx").eval() # return actual value of param
hou.node().evalParam("tx") # return actual value of param
hou.node().param("tx").set(2) # set param
hou.node().param("uniformscale").set(2)

Get node Info

  • Node Path
    foo_box.name() # '/obj/foo_geo/foo_box'
  • Node Name / Type
    foo_box.name() # 'foo_box' -
foo_box.type() # <hou.NodeType for Object geo> - its object that contain info
foo_box.type().name() # 'geo' -
  • Print all parameters of node
    for parm in foo.parms(): # get all parameters names in ball obj
   print(parm.name())
  • Childrens
    foo_geo.children() # get listo of all childrens
  • Print
    print(foo_geo.children())

    for i in foo_geo
 print(i)

Get inputs/outputs

foo_box.inputs()
foo_box.outputs()

fooBox = hou.node('/obj/foo_box') # print all inputs of node
for input in foo_box.inputs():
     print input

for output in foo_box.outputs():
     print output

hou.objNode

Hou.objNode documentation how is displayed and how manipulate

Transforms

parent = fooBox.parentTransform()
pre = fooBox.preTransform()
parm = fooBox.parmTransform()
world = fooBox.worldTransform()
product = parent * pre * parm
print (product == world) # True

fooBox.mmoveParmTransformIntoPreTransform()

hou.parm

fooTx = foo.parm("tx") # Get val of parameter
foo.setParms({"tx":3, "tx":2, "tx":1})

`foo.evalParm("tx")` # Get val of parameter in particular moment
# evalParm(path) - to access each parameter / Reference to this Python SOP via the node variable, we can use
seed = node.evalParm('seed')
threshold = node.evalParm('threshold')

evalParmTuple('t')

behaviour of all parameters

ty = hou.parmTuple('/obj/ball/t')[1]
ty.name() # 'ty'
ty.path() # 'obj/ball/ty'
ty.eval() # 1.11111
ty.evalAtFrame(10) # 1.44324

t = ty.tuple() # list of all params
len(t) # how many params have list

for parm in t:
  print parm.name() # tx, ty, tz

ry.hou.paramTuple('/obj/ball/r')[1]
ry.deleteAllKeyFrames()
ry.set(25) # will set rotationy in 25
ry.setRxpression("2*frame()") # now will rotate in time
ry.expression() # will give you: '2*frame()'

rx = hou.parmTuple('/obj/ball/r')[0]
keys = rx.keyframes()


for key in keys: # print keys
  print key


for key in ry.keyframes(): # print expression anims we set earlier
	print key

ry.asCode() # will print code

Attributes:

points[index].setAttribValue("Cd",(1.0,1.0,1.0)) - Set attribute
redVal=point.attribValue("Cd")[0] - Get attribute

setattrib

geo.addAttrib(hou.attribType.Point, "PointFoo", 14)
geo.addAttrib(hou.attribType.Vertes, "VertFoo", 15)
geo.addAttrib(hou.attribType.Prim, "PrimFoo", 44)
geo.setPrimIntAttribValues("PrimFoo", (11))

hou.geometry

Define 3d geo shape geo = node.geometry() - grabs the geometry data that is being fed into this node by calling its geometry() method

geo = hou.node('/obj/ball/AddPointNormal').geometry()


for point in points:
		pos = point.position()


for prim in prims:
		verts = prim.vertices()
		buff = "("
		for i in range(prim.numVertices()):
			buff += dtr(verts[i].point().number()) + " "
		buff += ")"
		print "(%d -> %s)" % (prim.number(), buff)
# (0) -> (1 1 1)
# (1) -> (1 2 1)

glob = geo.globPrims("50-60:2")
for prim in glob:
		verts = prim.vertices()
		buff = "("
		for i in range(prim.numVertices()):
			buff += dtr(verts[i].point().number()) + " "
		buff += ")"
		print "(%d -> %s)" % (prim.number(), buff)
# (50) -> (1 1 1)
# (52) -> (1 2 1)
#...
# (60) -> (1 2 1)

Create points and geo

node = hou.pwd()
geo = node.geometry()

# --------------------------------------------- IN SOP
# moving point

point = geo.createPoint()
point.setPosition((0,-2,0))

# --------------------------------------------- IN SOP
# create trix
poly = geo.createPolygon()
for pos in (0,0,0),(1,0,0),(0,1,0):
	point = geo.createPoint()
	point.setPosition(pos)
	poly.addVertex(point)

Groups:

myGrp=geo.createPrimGroup('name') - Create group
group.destroy() - Delete group, leaving contents intact

Add Point to group:

point=geo.createPoint()
myGrp=geo.createPointGroup('name')
myGrp.add(point)

Iterate group:

groups = geo.primGroups()
for group in groups:
    print group.name

I/O

import geo

geo.loadFromFile("C:/Temp/red.geo")`

RAW NOTES

Delete primitives

deleteList=[]
for i in boundingGrp.prims():
    deleteList.append(i)
geo.deletePrims(deleteList)

Timeline keys

rz = hou.paramTuple("/obj/ball/r")[2]
keys = rz.keyframes()

for key in keys:
		print key

# hou.Keyframe t=0 exp="becier()" lang=exprLanguage.Python v=0 s=0 in a=0.22 out a=0.42 use_acce_ratio=True

key4 = keys[3]
key4
# hou.Keyframe t=0 exp="becier()" lang=exprLanguage.Python v=0 s=0 in a=0.22 out a=0.42 use_acce_ratio=True

key4.frame() # 10.0
key4.time() # 24.00000
key4.expression() # 'bezier()'
key4.expressionLanguage() # exprLanguage.Python
ket4.value() # 114.22
key4.slope() #-123.442
key4.accle() # 34.324
key4.setExpression("spline()",exprLanguage.Python)

key4.setValue(400) #
rz.setKeyFrame(key4) # here change in wievport

param = hou.ch("param") - Read node parameter xBoundSize=lvar('SIZEX') - Read local variables

UI

hou.ui.displayMessage("hello") #display popup print p.selectPosition() - print location of click in the node editor network

create new node with box on the position under mouse

p = hou.ui.paneTabOfType (hou.paneTabType.NetworkEditor)
position = p.selectPosition() #position clicked
new_node = p.pwd().createNode("box") #posWorkDir
new_node.setPosition(position)

Johny

node = hou.pwd()
geo = node.geometry()

for shali in geo.points():
    print shali.number()
    node = hou.node('/obj/target%s' %int(shali.number()+1))
    pos = node.evalParmTuple('t')
    rot =node.evalParmTuple('r')
    shali.setPosition(pos)
    shali.setAttribValue("rot", rot)

swap HIP to JOB

def hipToJob():
    for node in hou.node("/").allSubChildren():
        if node.type().name()=="redshift::TextureSampler":
            fileJob = node.parm("tex0").rawValue().replace("$HIP","$JOB")
            node.parm("tex0").set(fileJob)
# by NickD

Import

import test
reload(test)
from test import *

Expressions:

frame()/4 - $F/4
time() - $T
lvar("nameoflocalVAr")
lvar("PT") - $PT

10/frame() * sin(frame()/10.0) (1+ch(“../ty”))/2

Viewport States

https://www.artstation.com/siver/blog/W9PL/houdini-blog-38-viewer-states
https://youtu.be/iMb8W2dH4hs

https://github.com/kiryha/Houdini/wiki/python-snippets

See what params is passing kwargs (pthos dict to see what is avalable)
special local dictionary - pass info about particular instance . created automaticly def export_params(kwargs)
