Modeling procedural vs Modeling destructive objects in one geo node

![[Pasted image 20240716030315.png]]

Hotkey Manager > Houdini > Panes > Geometry Viewers

With OG setup you are not encouraged to use some of options. Setup is modeling heavy but similar approach could be developed for other activities. Houdini approach is to connect short to first letter to remember better but its causing problems with speed and hand management.

Editor is lacking of few important optrions .

grouping selection type (also in whele)
alt and space lock
transform (insteda of edit)
edit node cannot change: align axies from M to other shortcut

GLOBAL

| | | | —– | ————– | | Shift | Selection | | Alt | Modeling tools | | Ctrl | |

Default		NEW
`S`	SELECT	`S`
`Enter`	INVOKE SOP	`Enter` / `Shift` + `Esc` / 6MB (mouse)
`Space`	CAMERA	`Space`
`T`, `E`, `R`	TRANSFORM	`W`, `E`, `R`
`X` , `C` ,`V`	Rings	`Z`, `X` , `C` ,`V`
`Q`	Repeat tool	`Q`
`P`	Params	`P`
`D`	Viewport Options	`O`
	Manual Update	`
	Auto Update	`Shift` + `
	Force Update	`Ctrl` + `

Edit / Draw/ Quick Shapes - node specific

CAMERA

Use only with Space to free mode combos. View options & Editor UI shorts

Default		NEW
`Alt` / `Space` + `LMB`	Rot	`Space` + `LMB`
`Alt` / `Space` + `MMB`	Move	`Space` + `MMB`
`Alt` / `Space` + `RMB`	Zoom	`Space` + `RMB`
`Space` + `5`	UV	`Space` + `5`
	Perspective	`Space` + `1`
	Top	`Space` + `2`
	Front	`Space` + `3`
	Side	`Space` + `4`
	Ortographic
	Game Pad Enable	`Spave` + `R`
	Game Pad	`A` ,`D`, `W`, `S`, `Q`, `E`
	Focus frame	`Space` + `F`
	Focus home	`Space` + `G`
	Focus c-plane	`Space` + `H`

SELECT

Press S to enter mode. Most of shorts with Shift modifier.

Default		NEW
`1`	Multi select
`2`	Points	`1`
`3`	Edges	`2`
`4`	Polys	`3`
`9`	Group Selection	`4`
	Color Group Selection	`5`
	Toggle select types	`6`
	Connected 3d	`7`
	Uv	`8`
	Name	`9`
SELECTION TOOLS
`F5`	laser	`F1`
`F2`	box	`F2`
`F3`	lasso	`F3`
`F4`	paint	`F4`


SELECTION MODES
`Shift`+`V`	Backmask	`Shift`+`B`
`Shift`+`C`	Contained	`Shift`+`C`
-	Group Normal	`Shift`+`N`

SELECTION MODIFY
`Shift` + `2`	Convert selection to Points	`Shift` + `1`
`Shift` + `3`	Convert selection to Edges	`Shift` + `2`
`Shift` + `4`	Convert selection to Polys	`Shift` + `3`
`LMB` x 2	Semi loop	`LMB` x 2
`MMB` x 2	Semi loop	`MMB` x 2
`Shift`+`A`	Semi loop	`Shift`+`Z`
`Shift`+`G`	Growth selection	`Shift`+`G`
`Shift`+`S`	Shrink selection	`Shift`+`F`
`Shift`+`B`	Selection bounds	`Shift`+`Y`
`Shift`+`I`	Invert	`Shift`+`I`
`Shift`+`Ctrl`+`E` (on edges)	Selection bounds edge	`Shift`+`U`

`Shift` + `P`	Set sellection pattern	`Shift` + `T` ZAJETE PRZEZ ALIGN jezeli tez ma dzialac w selection
`Shift` + `🡰` `🡲` `🡱` `🡳`	Growth pattern	`Shift` + `A` `D` `W` `S`
`Shift` + `Ctrl` + `🡰` `🡲` `🡱` `🡳`	Growt pattern till the end	`Shift` + `Ctrl` + `A` `D` `W` `S`
`K`	Growth till paint under mouse

`Shift` + `R`	Revert	`Shift` + `R`
`Shift` + `F`	Fill to all contained in type	?
`Shift` + `D`	Normal / Fill selections to borders of group	?
`Shift`+`N`	select none
`N`	select all

TRANSFORM

Default		NEW
`T`	Transform	`W`
`R`	Rotate	`E`
`E`	Scale	`R`
`Y`	Cycle	`T`
`M`	World Coordinates	`A`
`MMB`	move selection


		Hide	`H`
		Unhide	`Shift` + `H`
		Invert	`Ctrl` + `H`

https://youtu.be/Zh6Q6r9LQlA

Pivot / Handle

For animation. Permanent pivot of object.

Default		NEW
`'`+`Shift`/`Insert`	Pivot - pivot transform change parameter.	`F`
`'`	Handle - leave pivot unaffected. Detached Viewport handle temporary. For modeling and placement.

MENU
`RMB>presistant`	For enable 2nd handles!
`RMB>SnapTo..`	Pivot or centroid.
`RMB>HandleParameters`	Options
`RMB>Local/Global`	Local pivot points vs Global - centroid of all
`RMB>TranslateGloballyInLocalControl`	Local transform of last selected

Align

Align by Orientation picking. Select points/edges, enable tool and hover over geometry to snap or RMB on the handle and choose Align handle ▸ Start orientation picking 3) Hover over geometry .. Y is up. 4) klick Dependencies

if you have object or world aligned handles it change behavior

Default
`:` / `;`	Orientation picking toggle	`T`
`:` + `Shift` Hold	Orientation picking (need to hold)
`:` + `Shift` + `LMB`	only Rotate
`:` + `Shift` + `LMB` + `Ctrl`	Look at Y (to change click handle with ctrl)
`:` + `Ctrl` + `LMB`	only Move
`:` + `select axis` + Drag	secondaty axies direction

Snap

			NEW
		Grid	`Shift` + `F1`
		Point	`Shift` + `F2`
		Prim	`Shift` + `F3`
		Multi	`Shift` + `F4`

for edge if you select near center it will snap center to point, if selected near end will snap end point of edge

Construction plane

	DEFAULT
	`/` / `?`	Construction plane	`Y`
		You can choose pivot handle to choose primary axis for align it will appear as yellow

Viewport

	Viewport other nodes

SOPS

Create new node tool. Alt would be nice or Ctrl + Alt

[Edit] SOP


`L`	Slide on Surface
`H`	Peak
`B`	Sculpt
`Y`	Edit
`Shift`+`T`	Tweek mode (no handles )	![[tweak.svg]]
Shift C	make circle

Edit geo tools	Point	Edges	Border	Poly
`Ctrl` + `A`	-	Make circle	Make circle	Circle
`Ctrl` + `D`	Evenly spaced	Evenly spaced	Evenly spaced	Square
`Ctrl` + `G`	Straighten	Straighten	Straighten	Flatten n-gone
`Ctrl` + `X`	Fuse	Fuse	Fuse	Fuse
`Ctrl` + `Shift` `X`	Delete	Delete	Delete	Delete
`Ctrl` + `C`	Relax	Split Knife like tool	Bridge / Fill	Bridge / Fill
`Ctrl` + `V`	-	Flip	-	Inset
`Ctrl` + `B`	Bevel	Bevel (bridgeborders)	-	Extrude
				Bridge

Draw

`Shift`+`1` Build

points:

LMB - create / select
Shift+[LMB] select
Ctrl - angels
Alt - viewport
F FILL
Shift+K/K - dziwnby bridge / BRIDGE
Shift+del - remove unused points
Shift+C - Circle
Shift+S - Straighten
Shift+E - Evenly space

prims:

Shift+C - Circle
Shift+X - Collapse

`Shift`+`2` Slice

`Shift`+`3` Split

`Shift`+`4` Brush

`Shift`+`5` Smooth

Delete / Blast / Fuse

edge / points / poly

Weld

A - collapse to midpoint
B -restart
G - cancel

Bridge

edges / NOT WORKING ON POLYS

Extrude

edge / poly

Fill

edges

Bevel

Operation

Drag LMB
Ctrl + LMB - Subtract from selection
Shift + LMB - Add to selection
Shift + A LMB - Add loop to selection
Scroll - change divisions

Clip / Mirror

Operation

F + Drag LMB - Draw plane Displace
G - display wire in
H - diaplay plane

Split / Edge loop

Split loop !

Scroll - split magnet

Path deform

Operation

B - change align View
F , G , H - change preview

Curve

RMB Menus

On pivot - Edit manipulator
On empty - Move
With Space/Alt - View

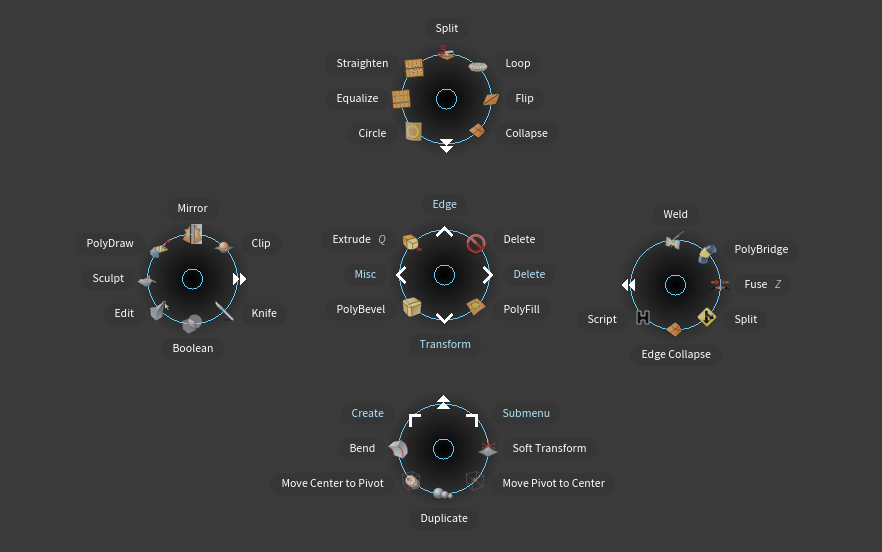

Radial

All Adam settings in one

default circle menu shoudld be on C because it change automaticly for some tools

![[SRC/hou_icons/Untitled.png]]

Better options:

make one ring for create geo
one for snap
one for change viewport + selection
uv
edit

![[Pasted image 20240716030927.png]]

#### Managing multiple object
- name prim by class
- rest pos
- pack geo
- what node for material ?


# CUSTOM


`Shift` + `W` - In all windows wireframe mode
~~`Alt` + `W`~~ - close window
~~`Ctrl` + `1`,`5`~~ ... - change

`9` selection group
`\` - manual update   `|` - auto update      - Stop / Start logic sim!
` ' ` - RESELECT FOR CURENT TOOL
` ~ ` - SECURE SELECTION
~~`U`/`I`  ~~<< DELETE - go up in hierarchy

- ? szybki przeskok do porzednich nodów na dodatkowym scrollu ???



#### Model  / move / manipulate

- coordinates
- shading
- snap
- pivot
- construction plane
- align
- repeate  << Q is ok
- hide << na selekcji tylko  i edit modzie

### Rings
- model
- snap
- view
-

### Shortcuts for tools
- extr / extract / dupl / mittot  / disol
- fill bridge bevel  clip mirror
- group  fuse split loop
- draw edge collapse bool combine  normal  wels smooth

czego brakuje

MERGE UVS
![[Pasted image 20240714231130.png]]
move with shift should duplicete
: ![[Pasted image 20240723031033.png]]

Network View Graph

~~C is visualize~~ should be: comment

![[Pasted image 20240724041253.png]]


`U`	Up
`I`	Dive
`Shift` + `/`	Find node by path
`Ctrl` + `F`	Find node by name
`PageUp` or `PageDown`	move through nodes `Shift`
` ‘ `	last view
`F` or `G`	zoom selected
`H`	zoom all

Node customize


`Z`	NODE shape
`X`	NODE visualizer
`C`	NODE color

Layaut


`L`	layaut
`Shift`+`L`	layout Selected
`Shift` + `A` + `🡰` `🡲`	(on selected nodes) - align horizontaly
`Shift` + `A` +`🡱` `🡳`	(on selected nodes) - align verticaly
`Shift` + `S`	Change link type
`Ctrl`+`Shift`+`Alt`+ `LMB`	on a node will duplicate the node and automatically reference everything

To set/change key klick on shelf or menu item while holding Ctrl + Alt + Shift

Parameter Fields

In properties


`Alt` + `LLM`	Create key
`Ctrl` + `LLM`	Delete key
`Ctrl`+ `Shift` + `LLM`	Delete key whertever is
`Ctrl` + `MMB`	Zero
`Shift` + `LLM`	OPEN CURVE EDITR

.	.	.
	Default value	`Ctrl` + `MMB` - reverte to default
	Modified value	`Shift` + `RMB` - switch to previous value
	Parameter being manipulated in wievport
	Value changed waiting for kayframe
	Keyframe / fn on current frame	`Alt` + `LMB` - add / `Ctrl` + `LMB` - remove key / `Ctrl` + `Shift` + `LMB` - remove channel
	Keyframe / fn on other frame
	Channel reference on current frame
	Channel reference on other frame
	CHOP
	Non default language fn
	Non default language fn with channel reference
	Locked
	Take - not changed
	Take - not changed
	Evaluated string (MMB on string param)	`Ctrl` or `Alt` + `E` - edit expression
	Bound to viewport handler
	Error
	Error	wrong language used
	After deleted all keys ?

Desktop
Radial Menu
qLibDarkFlatTheme

TOPs

Generate nodes
Shift + G - revert cooked to graph and cook uncooked // do it before delete from disc
Shift + V - Dirty node and cook all

Tools

C:\Program Files\Side Effects Software\Houdini 18.0.432\bin\Gplay - przegladarka 3d

![[attribdelete.svg]]

[[TUT]] [[16-02-01-Rendering]] [[08-01-01-Material]] [[18-01-01-Color]] [[14-01-01-Procedural]] [[11-01-01-Math]] [[12-01-01-Gaea]] [[16-02-01-Substance_Designer]] [[17-01-01-Modeling]] [[17-01-01-Modeling_Foliage]]

[[02-01-01-LSystem]] [[03-01-01-Karma]] [[04-01-01-Mantra]] [[05-01-01-Heightfields]] [[06-01-01-CHOP]] [[07-01-01-PDG]] [[08-01-01-CFX]] [[10-01-01-LAB]] [[11-01-01-COP]] [[12-01-01-USD]] [[13-01-01_VOP]] [[13-01-01-SOP]] [[13-01-01-SOP-curves]]

[[01-01-01-Noise]] [[02-01-01-V_DrawCurves]] [[02-Vex_Volume]] [[03-01-01-V_Measure]] [[13-01-01_VOP]] [[05-01-01-V_Orientation]] [[07-01-01-V_Strings]] [[08-01-01-V_Expressions]] [[09-01-01-V_Attribs]] [[10-01-01-V_Syntax]] [[12-01-01-Python-hou]]

[[01-01-01-FLIP]] [[01-01-01-PYRO_Dense]] [[01-01-01-RBD_SOP]] [[01-01-01-RBD]] [[01-01-01-Vellum]] [[01-01-01-Vellum_SOP]]

Match translate

is icon on the right of transform params click, and select obj u want rotate to.
